Warranty
-
Masport - Lifetime Catcher
-
Masport - 5 Year Housing/Chassis and Parts
-
Masport - 5 Year Parts
-
Masport - 5 Year Engine Generic

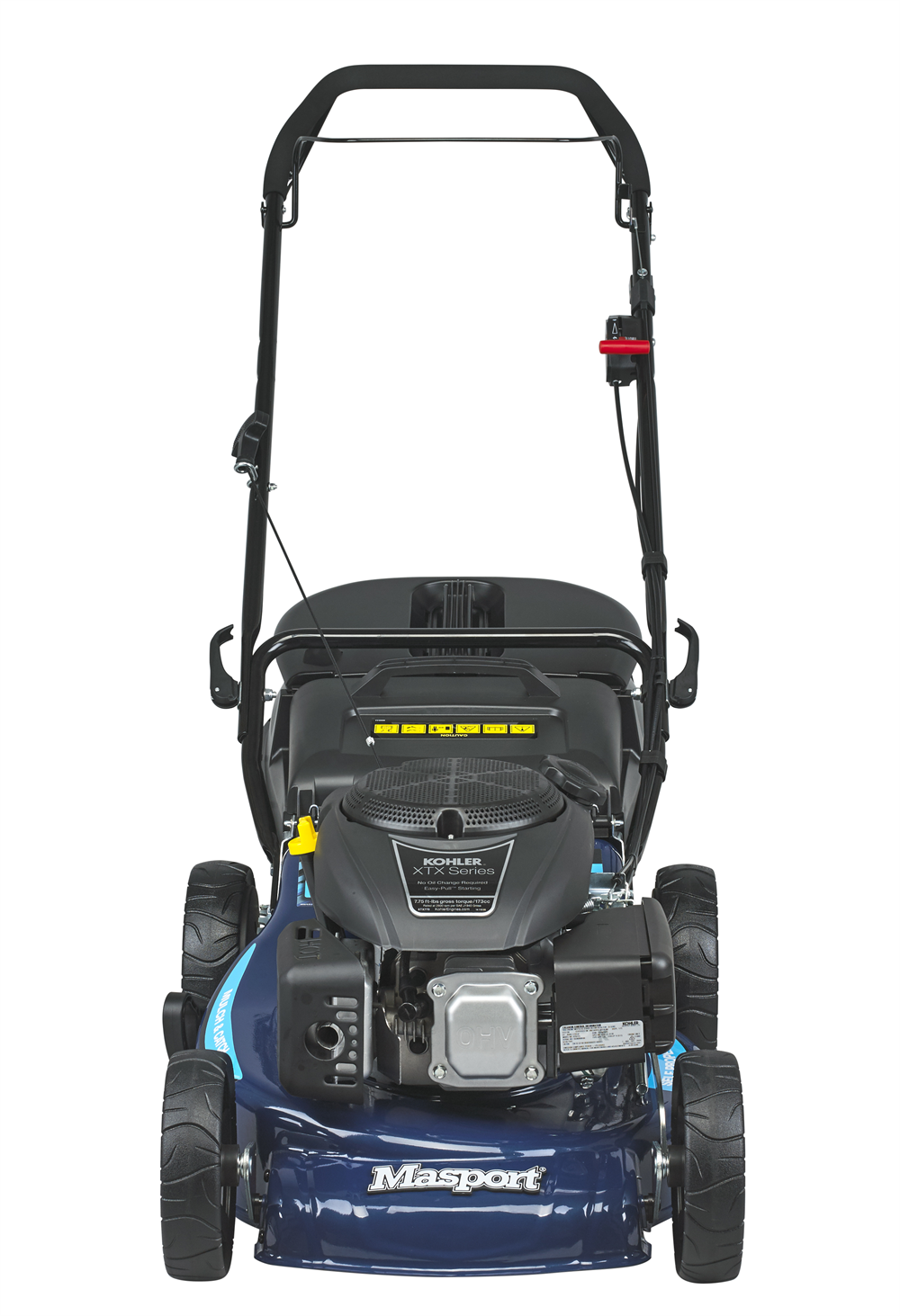

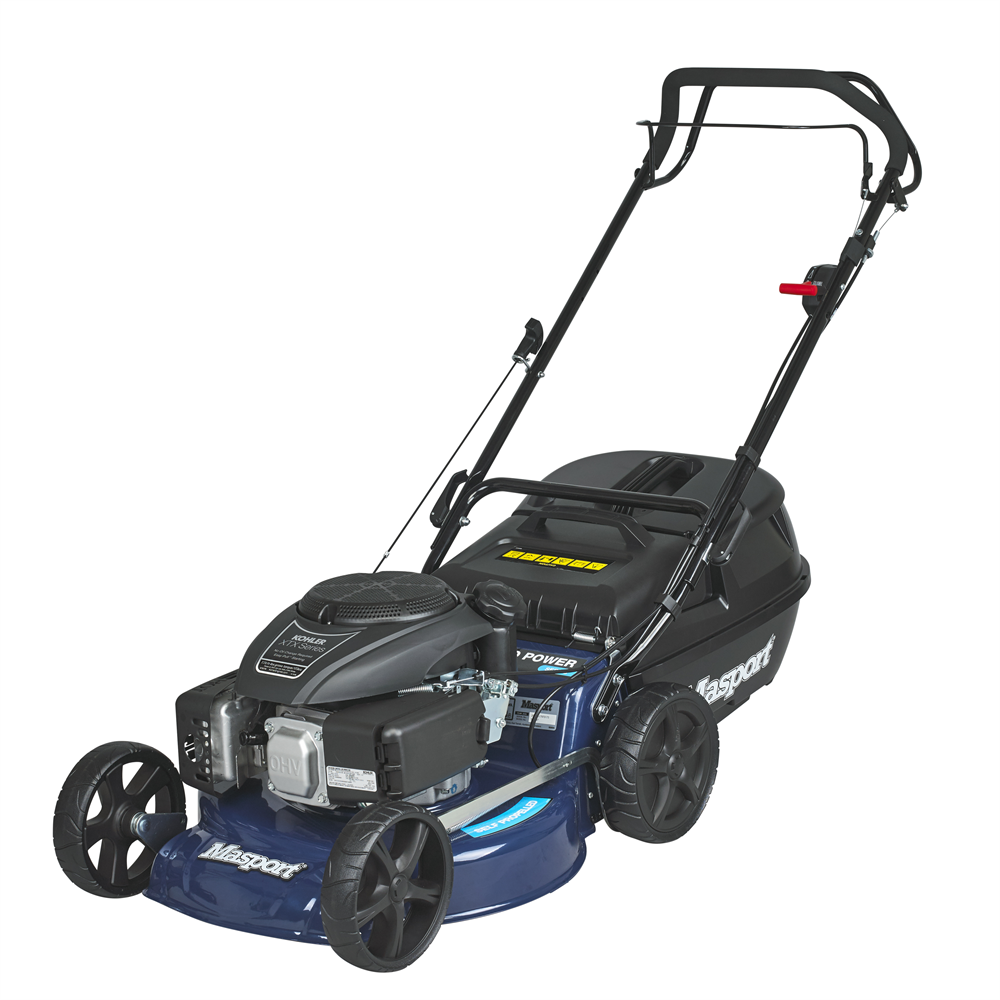

Catch, Mulch or Rear Discharge Lawnmower, Kohler XT775 IC 173cc OHV engine, Quadcut® 4 Blade Disc System, Self Propelled, 19" Heavy Duty Steel Chassis
Highlights
- Catch, Mulch or Rear Discharge

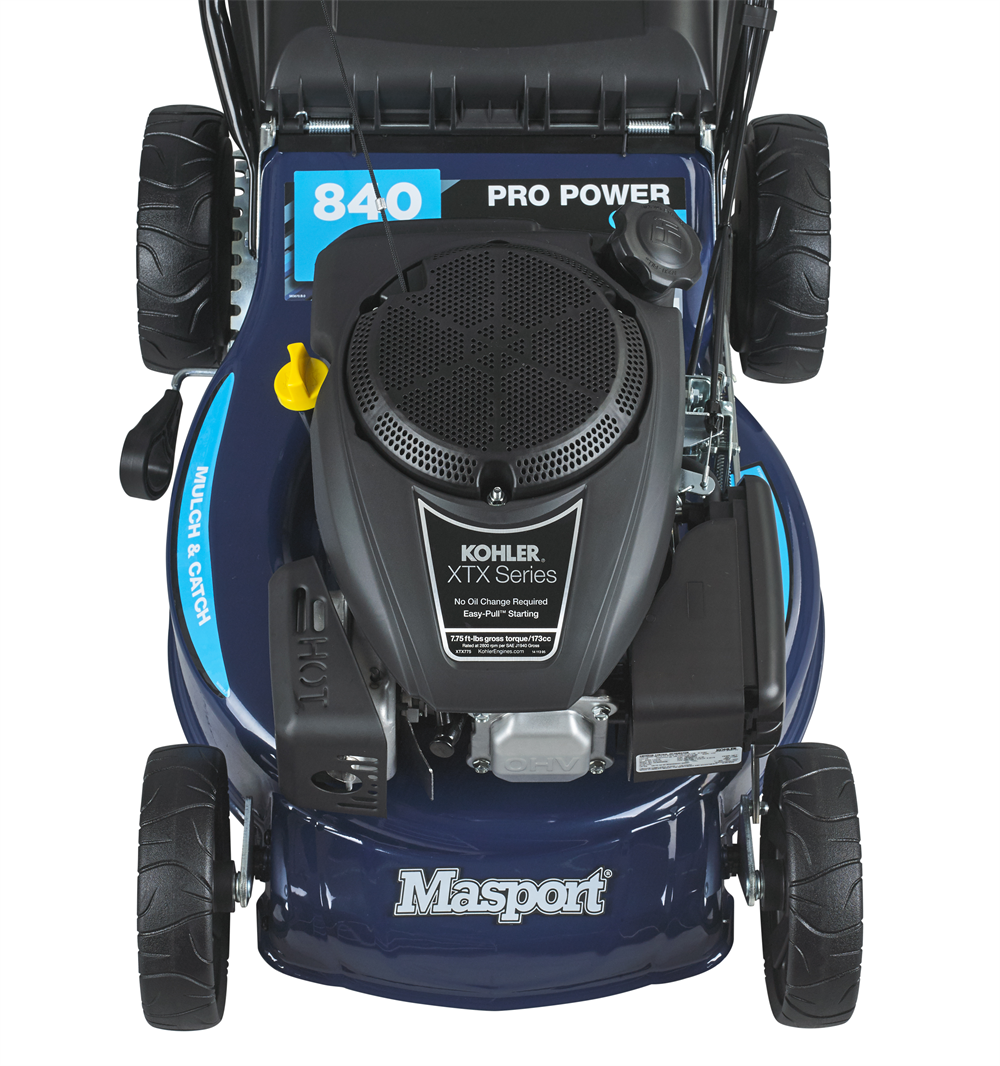

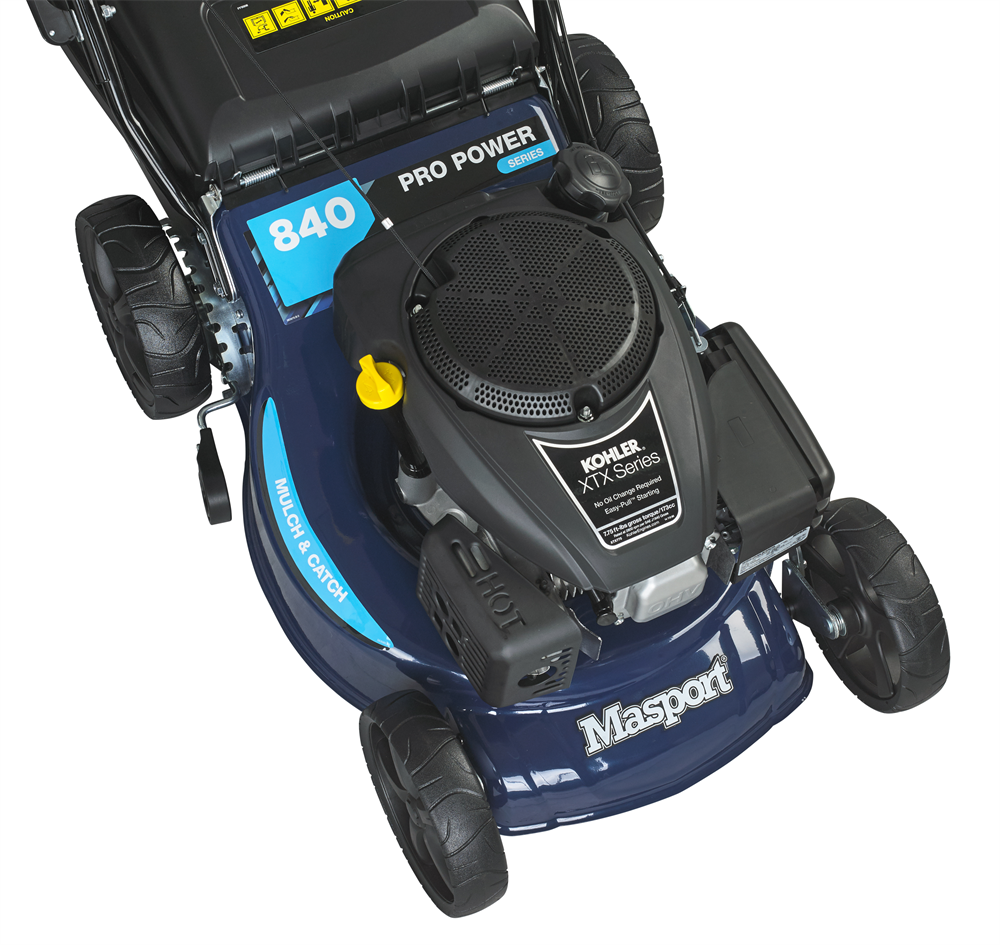

- Powered by Kohler XT775 IC 173cc OHV Auto Choke 4 stroke engine
- Cast iron sleeve in cylinder
- 485mm (19") heavy duty steel chassis
- 15mm - 75mm cutting height range
- Self Propelled - Ground speed
- Masport Quadcut® 4 Blade Disc System for superior catching due to increased airflow
- Front 200mm (8") and Rear 220mm (9") dual ball bearing wheels

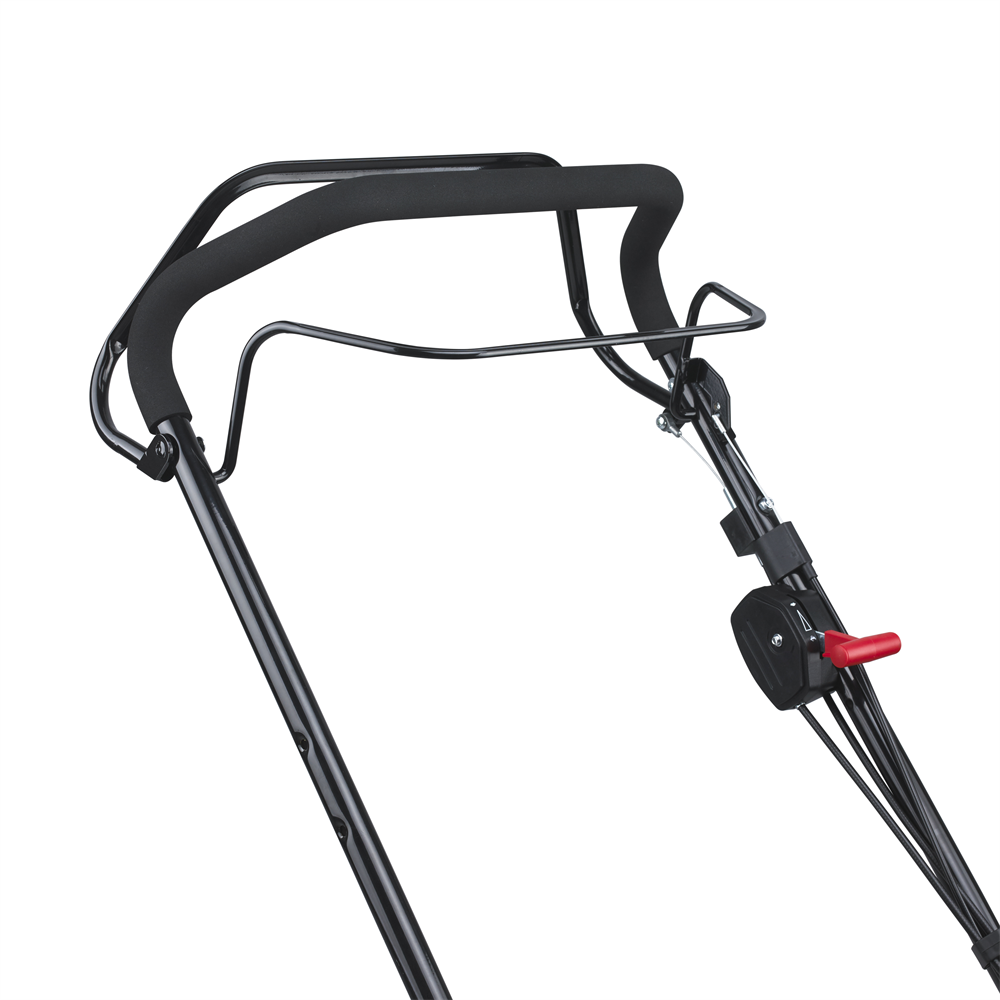

- Comfortable upturned upper handle with soft grip and Operator Presence Control bar
- Reinforced lower handle for added strength
- Camlocks for quick release handle fold down
- Large capacity 50 litre high density plastic catcher with 'full' indicator
- Solid catcher retainer system
- Rear discharge chute designed for efficient grass release when mowing without a catcher
- Zone start for comfortable starting position
Features
Mulching Capable
Naturally recycles the grass by recutting it and feeding it back into your lawn.
Single Speed Self Propelled
Squeeze the self propelled bail to the handle to propel the mower forward. The self-drive system does the work for you, making mowing quicker and easier!
Catcher 'Full' Indicator
Shows when the catcher is full - takes the guess work out of emptying the catcher.
HDPE Plastic Catcher
High Density Polyethylene Plastic catchers.
Zone Start
The conveniently positioned starter cord eliminates the need to bend all the way down to pull-start, reducing the risk of back strain.
Rear Discharge Chute
Designed to distribute grass out of the rear of the machine and spread it evenly and safely without blocking.
Specifications
Engine
Engine Make
Kohler
Engine Model
XT775 IC
Engine Type
4 Stroke
Engine Capacity
173cc
Power Rating (Torque)
7.75ft/lb or 10.5Nm
Cutting
Cutting Width
485mm (19")
Cutting Height Range
15mm - 75mm
Cutting Methods
Catch, Mulch, Rear Discharge
Number of Blades
4
Cutting System
Masport Quadcut® 4 Blade Disc System
Cutting Height Steps
10
Cutting Height Adjustment
Single Point
Drive
Drive System
Single Speed Self Propelled
Chassis / Deck
Chassis Material
Heavy Duty Steel
Handle
Upper Handlebar Type
Upturned with soft grip and Operator Presence Control bar
Handlebar Retainer
Camlocks
Lower Handlebar Type
Reinforced
Catcher
Catcher Type
High density plastic
Catcher Volume
50 litre
Wheels
Wheel Bearing Type
Dual Ball
Wheel Type & Size
MSV® Mag Front 200mm (8") and Rear 220mm (9")
Weight
37.2kg
Product Dimensions (W x H x L)
549mm x 1057mm x 1463mm
Documents
- Owner's Manual
- Warranty - Engine
- Warranty - Owner
