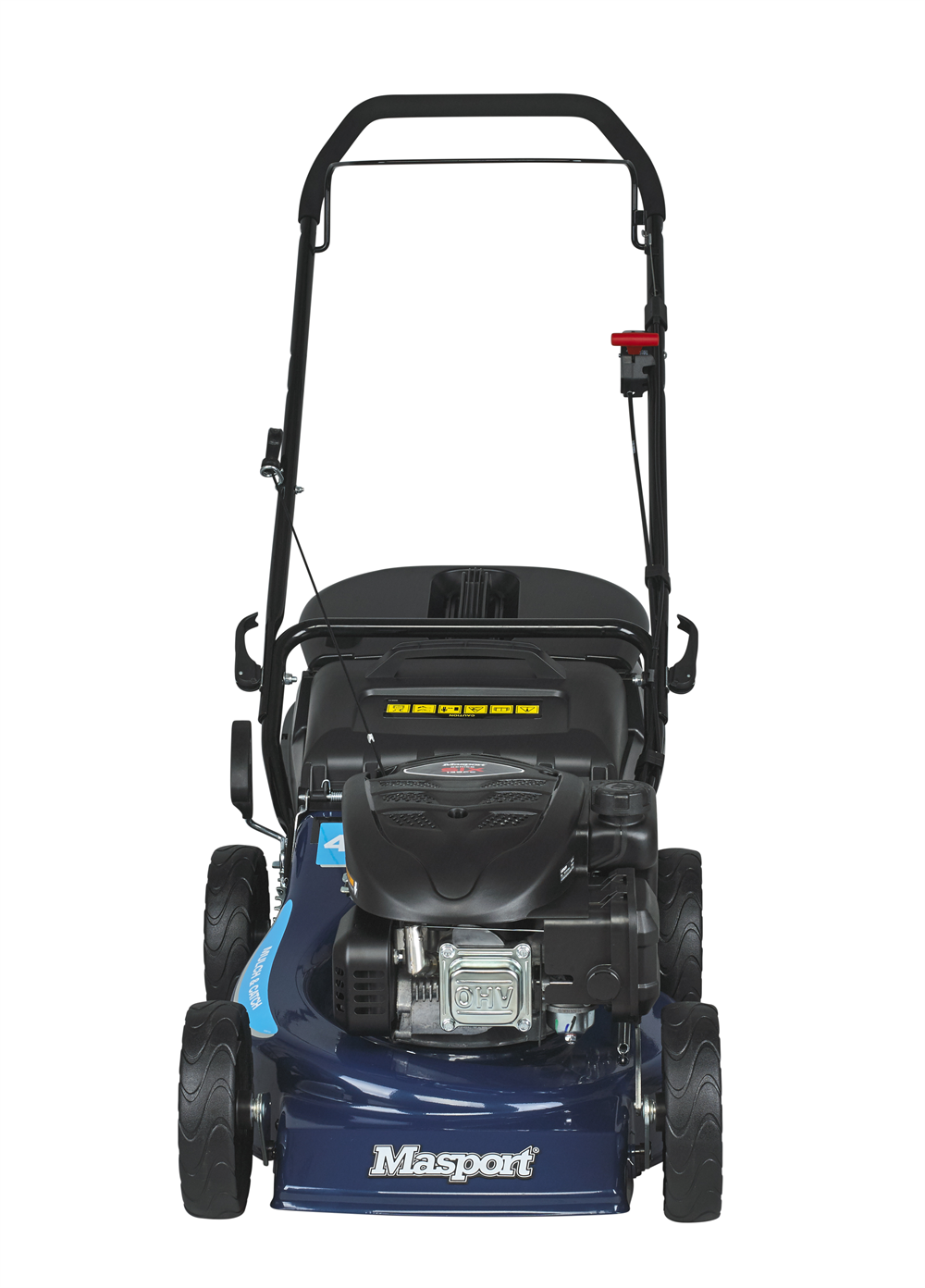

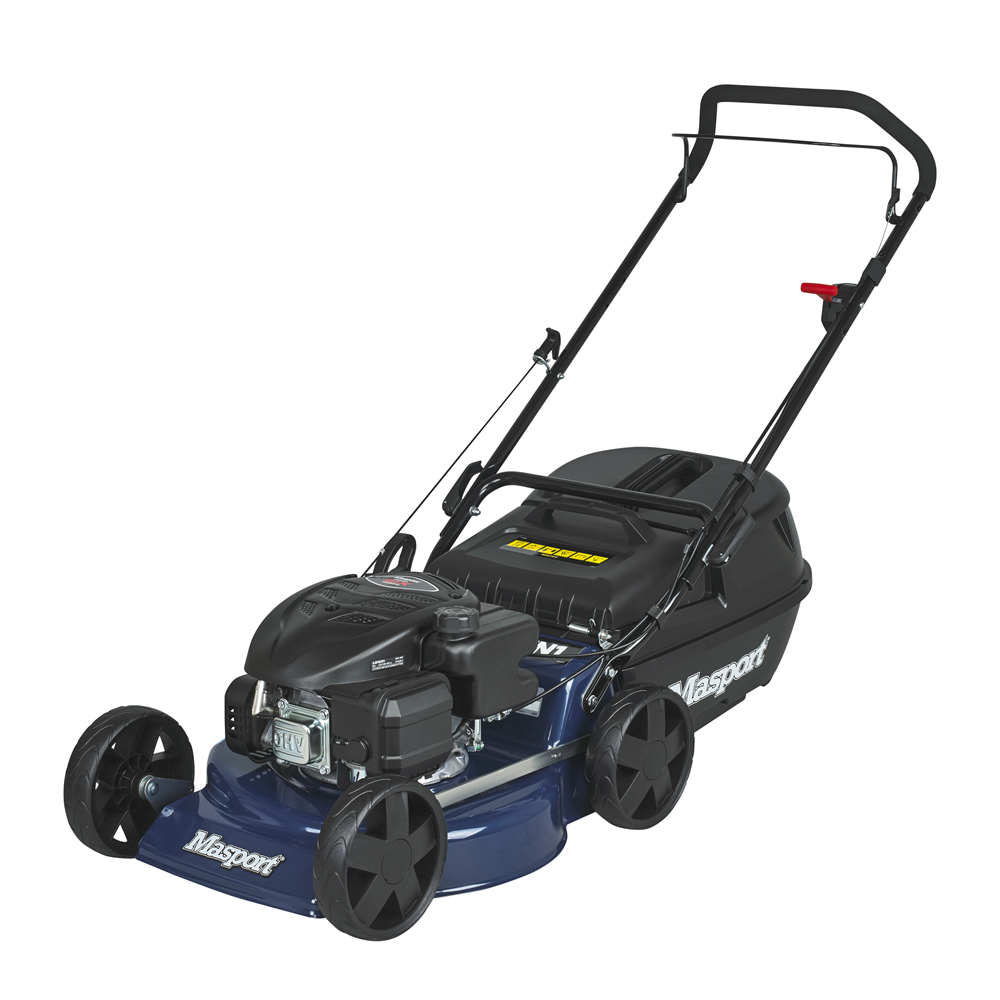

430 3'n1

Achieve a pristine lawn with the 430 3'N1 lawnmower. Built on a robust 460mm (18") steel chassis and powered by a reliable 139cc Masport SIX OHV 4 stroke engine with easy starting auto choke. The patented Quickcut® 2 blade cutting system and high arch chassis enable your grass clippings to be mulched, discharged through the rear chute or caught in the high density plastic catcher. Exclusive to Bunnings New Zealand, this mower is perfect for maintaining residential properties.
Features
  • Catch, Mulch or Rear Discharge

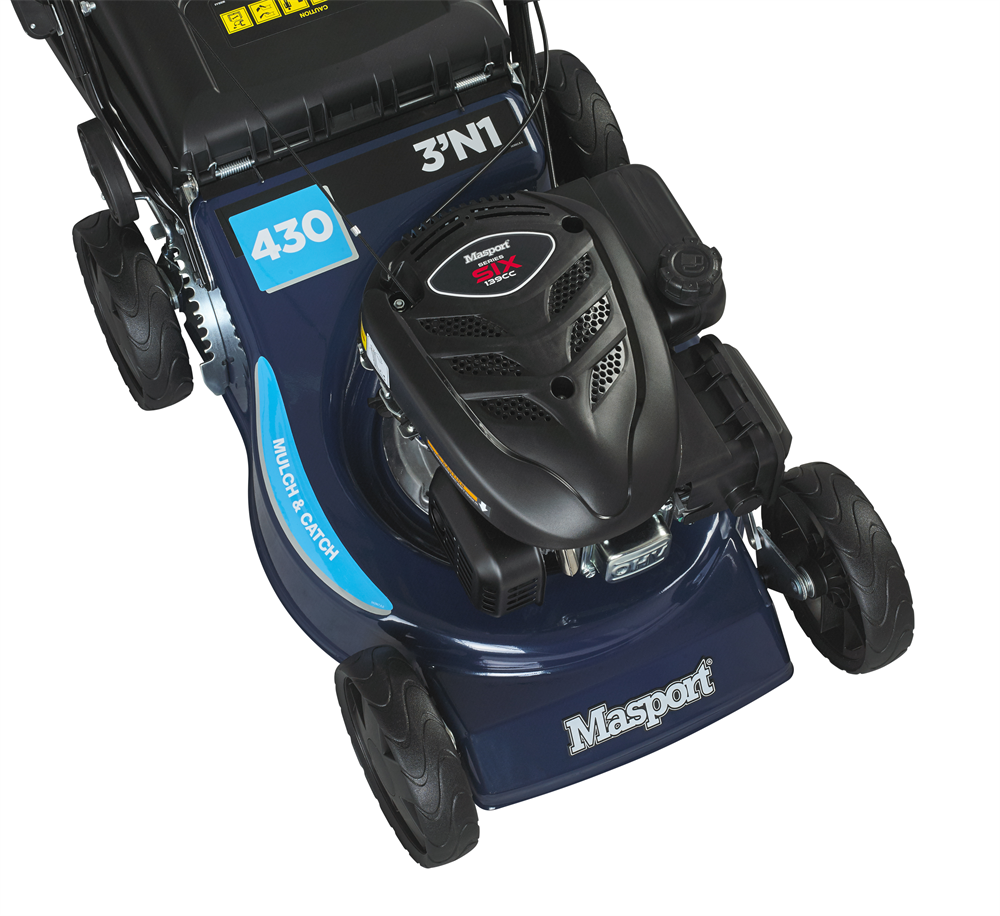

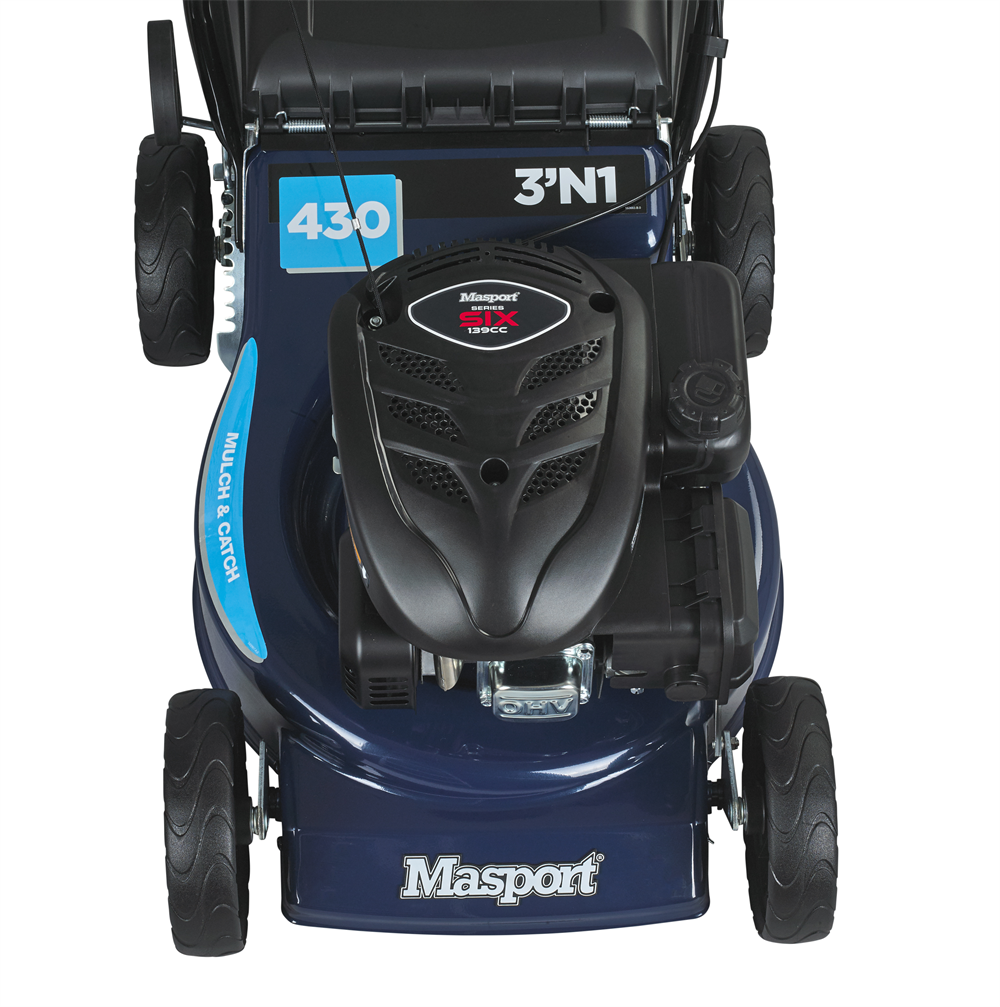

  • Powered by Masport Series SIX 139cc OHV Auto Choke 4 stroke engine
  • Auto Choke engine starts easily whether cold or hot and is ready to use immediately
  • 460mm (18") steel chassis
  • 12mm - 73mm cutting height range
  • Masport Quickcut® 2 blade cutting system
  • Front 200mm (8") and Rear 200mm (8") dual ball bearing wheels
  • Comfortable upturned upper handle with soft grip and Operator Presence Control bar
  • Reinforced lower handle for added strength
  • Camlocks for quick release handle fold down
  • Large capacity 50 litre high density plastic catcher with 'full' indicator
  • Solid catcher retainer system
  • Rear discharge chute designed for efficient grass release when mowing without a catcher
  • Zone start for comfortable starting position
Specifications
Engine Make
Masport
Engine Model
Series SIX
Engine Type
4 Stroke
Engine Capacity
139cc
Power Rating (Torque)
5.5ft/lb or 7.5Nm
Starting System
Auto Choke
Cutting Width
460mm (18")
Cutting Height Range
12mm - 73mm
Cutting Methods
Catch, Mulch, Rear Discharge
Number of Blades
2
Cutting System
Masport Quickcut® 2 Blade System
Cutting Height Steps
10
Cutting Height Adjustment
Single Point
Drive System
Push
Chassis Material
Steel
Upper Handlebar Type
Upturned with soft grip and Operator Presence Control bar
Handlebar Retainer
Camlocks
Lower Handlebar Type
Reinforced
Catcher Type
High density plastic
Catcher Volume
50 litre
Wheel Bearing Type
Dual Ball
Wheel Type & Size
Standard Front 200mm (8") and Rear 200mm (8")
Weight
27.6kg
Product Dimensions (W x H x L)
533mm x 1043mm x 1423mm
Downloads
Warranty
5 year warranty on this lawnmower's parts Masport - 5 Year Parts
5 year warranty on this lawnmower's engine Masport - 5 Year Engine Generic
Lifetime warranty on this lawnmower's plastic catcher Masport - Lifetime Catcher
5 year warranty on this lawnmower's steel housing and parts Masport - 5 Year Housing/Chassis and Parts
Petrol Lawnmowers

430 3'n1

561753
$522 (RRP)

Catch, Mulch or Rear Discharge Lawnmower, Masport Series SIX 139cc OHV engine, Quickcut® 2 Blade System, 18" Steel Chassis

5 year warranty on this lawnmower's parts 5 year warranty on this lawnmower's engine Lifetime warranty on this lawnmower's plastic catcher 5 year warranty on this lawnmower's steel housing and parts
