Warranty
-
Masport - Lifetime Catcher
-
Masport - 10 Year Alloy Housing/Chassis
-
Masport - 5 Year Parts
-
Masport - 5 Year Engine Generic
Cut, Catch, Mulch, Side Discharge or Chip, B&S 700 Series™ DOV® engine, 4 Blade Disc System, 19" Alloy Deck
Highlights
- Cut, Catch, Mulch, Side Discharge or Chip
- Powered by Briggs & Stratton 161cc Series™ 700 DOV® ReadyStart™ 4 stroke engine
- ReadyStart™ - no priming required and easy starting
- 485mm (19") heavy duty aluminium non rust chassis
- Masport 4 Blade Disc System for superior catching due to increased airflow with Chipper Blade
- Front 200mm (8") and Rear 200mm (8") adjustable dual bearing wheels
- MSV® Ergonomic adjustable handle with soft grip
- Reinforced lower handle for added strength
- Ergo camlocks for adjustable handle position
- Handle Lift System for easy catcher removal and storage
- HDPE Plastic Catcher with 'full' indicator
- Smartchute® for side discharge
- Zone start for comfortable starting position
- Chipperchute®
- Masport Dual Mowzone® for edge to edge cutting
- Washport to facilitate cleaning
Features
Mulching Capable
Naturally recycles the grass by recutting it and feeding it back into your lawn.
Smartchute®
Mow without the catcher and avoid sloppy grass clumps
Chipperchute
With our additional chipper blade, shred branches up to 35mm in diameter turning them into useful mulch.

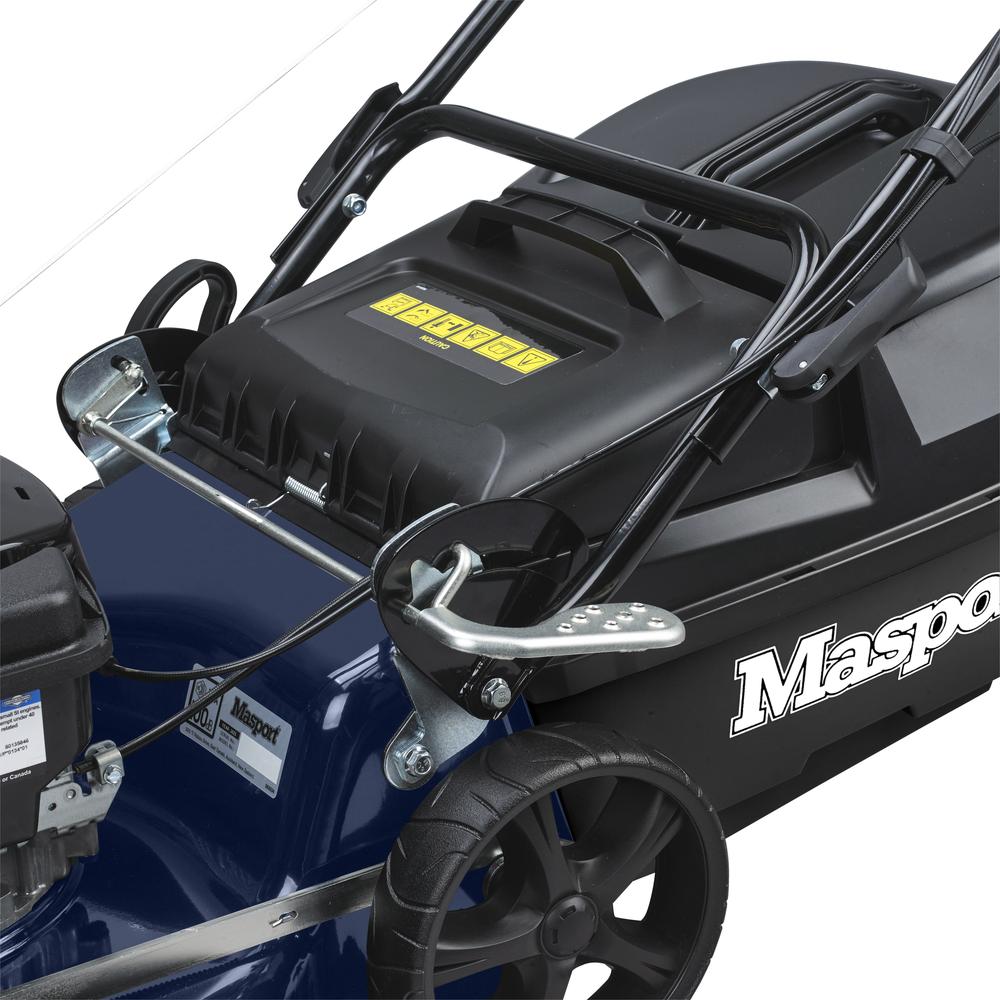

Handle Lift System
Step on the foot pedal and lift the handle to quickly access the catcher, it is that easy!
Adjustable Wheel Bearings
Ball bearing wheels make the mower easy to push and with a threaded axle and nut, the wheels are adjustable.
Catcher 'Full' Indicator
Shows when the catcher is full - takes the guess work out of emptying the catcher.
HDPE Plastic Catcher
High Density Polyethylene Plastic catchers.
Ergo Adjustable Cam Locks
Multiple handle height adjustment to combat back strain. Easy fold down for storage.
Masport Dual Mowzone®
Blade coverage extends beyond the wheel width on both sides allowing closer cuts to curbs, walls and fences, giving your lawn a tidier finish.
Zone Start
The conveniently positioned starter cord eliminates the need to bend all the way down to pull-start, reducing the risk of back strain.
Deck Washport
Hose fitting point on the housing to clean the housing while the mower engine is running, increasing the life of the deck and improving cutting efficiency.
Specifications
Engine
Engine Make
Briggs & Stratton
Engine Model
700 Series™ DOV®
Engine Type
4 Stroke
Engine Capacity
161cc
Power Rating (Torque)
7ft/lb or 9.52Nm
Starting System
ReadyStart™
Cutting
Cutting Width
485mm (19")
Cutting Height Range
15mm - 75mm
Cutting Methods
Cut, Catch, Mulch, Side Discharge, Chip
Number of Blades
5
Cutting System
Masport 4 Blade Disc System with Chipper Blade
Cutting Height Steps
11
Cutting Height Adjustment
Single Point
Drive
Drive System
Push
Chassis / Deck
Chassis Material
Aluminium
Handle
Upper Handlebar Type
MSV® with soft grip and Handle Lift System
Handlebar Retainer
Ergo Adjustable Camlocks
Lower Handlebar Type
Reinforced
Catcher
Catcher Type
HDPE Plastic
Catcher Volume
42L
Wheels
Wheel Bearing Type
Adjustable Dual Ball
Wheel Type & Size
MSV® Mag Front 200mm (8") and Rear 200mm (8")
Weight
34.2kg
Product Dimensions (W x H x L)
515mm x 1000mm x 1370mm
Documents
- Owner's Manual
- Warranty Card
