Warranty
-
Masport - Lifetime Catcher
-
Masport - 10 Year Alloy Housing/Chassis
-
Masport - 5 Year Parts
-
Masport - 5 Year Engine Generic

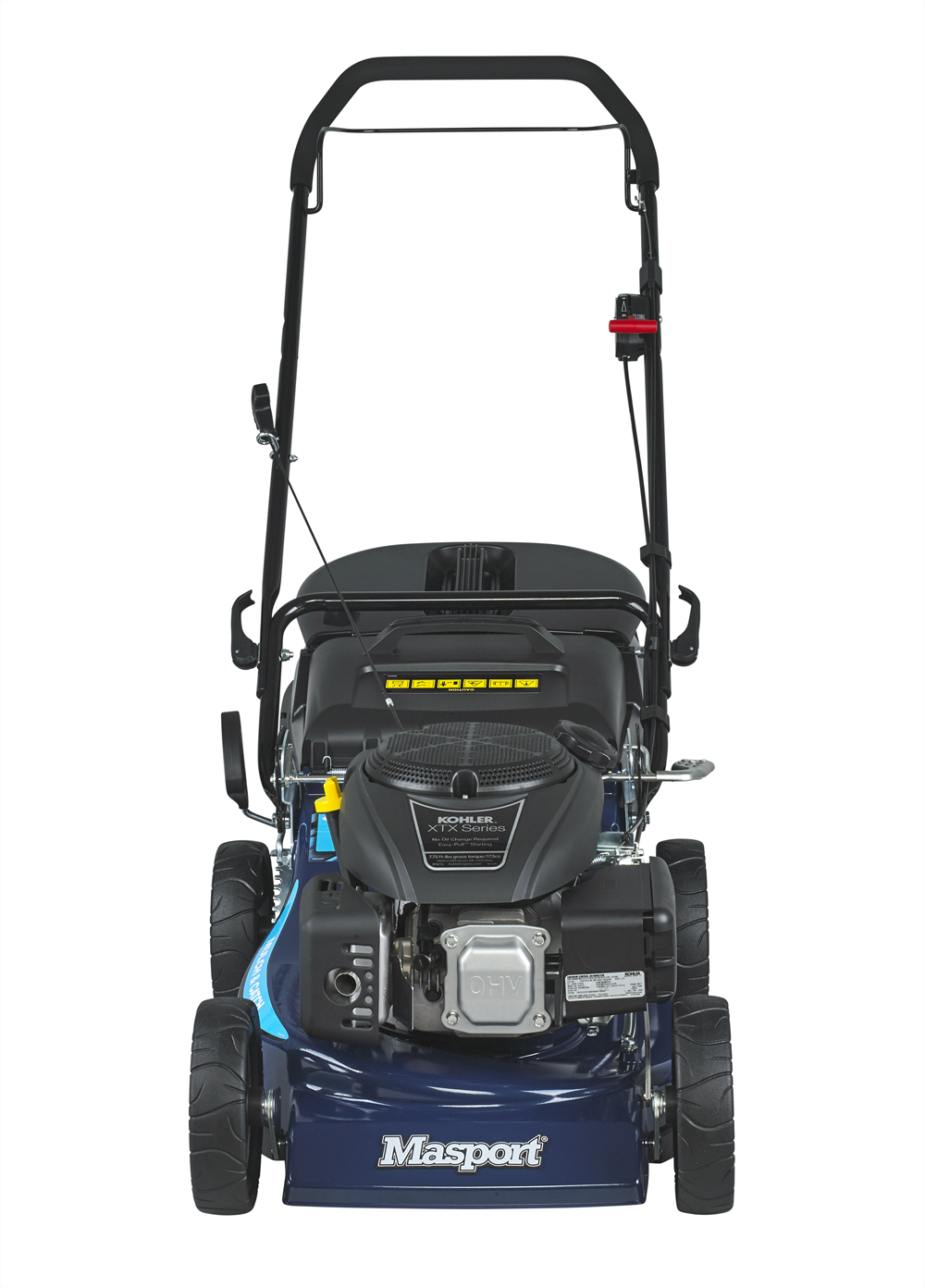

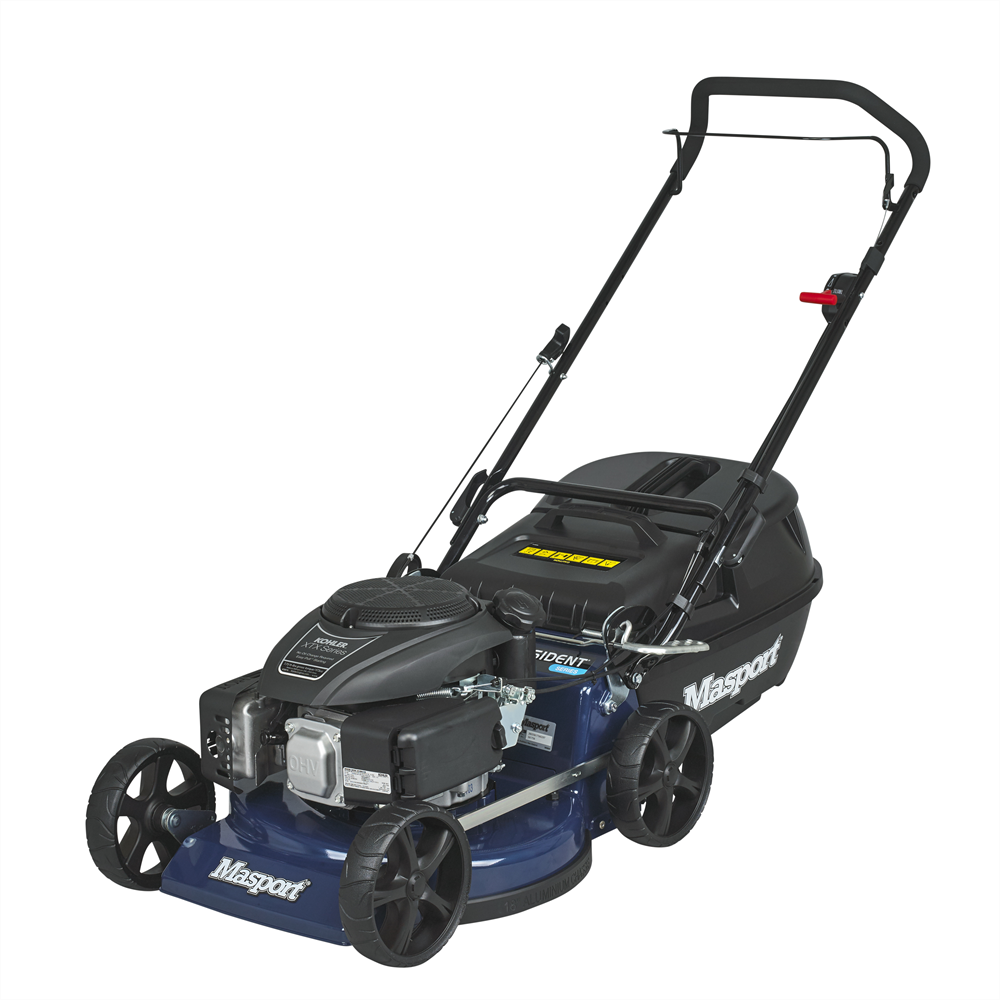

Catch, Mulch or Rear Discharge Lawnmower, Kohler XT775 IC 173cc OHV engine, Quadcut® 4 Blade Disc System, 18" Heavy Duty Aluminium Chassis
Highlights
- Catch, Mulch or Rear Discharge

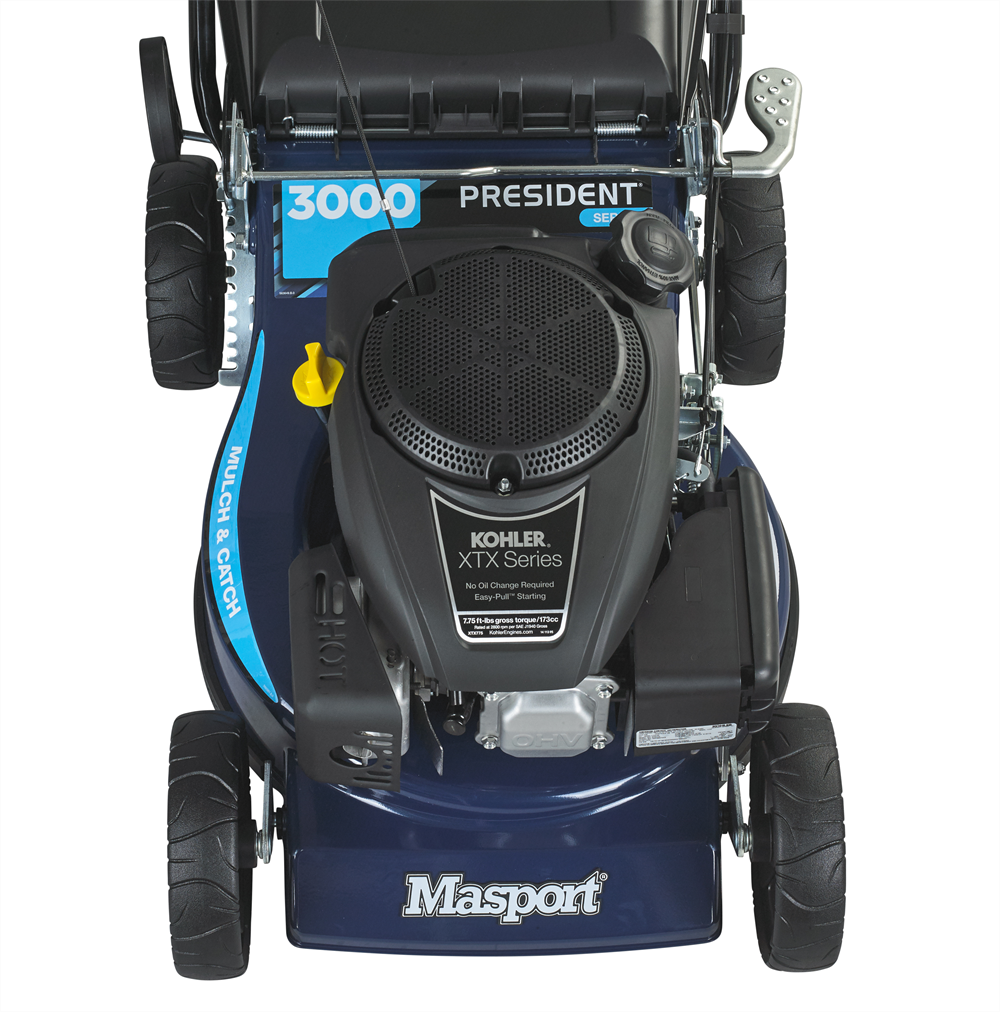

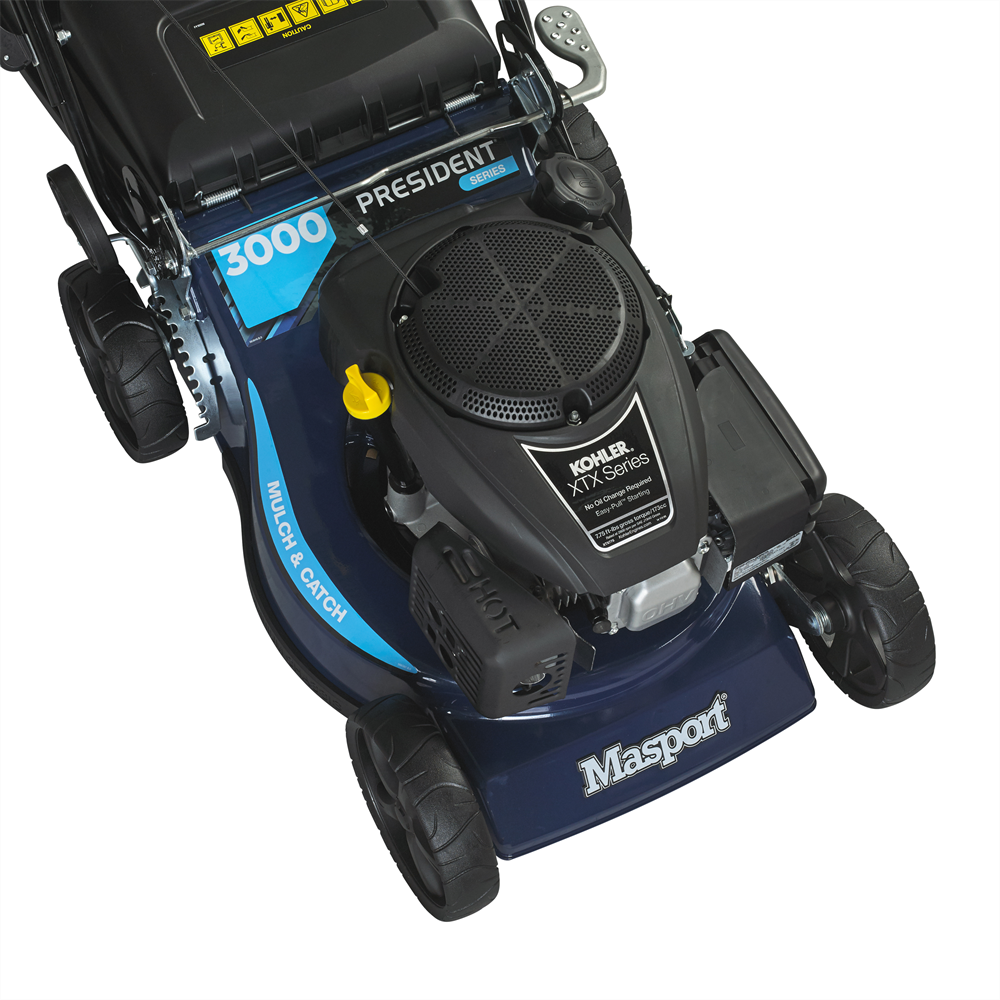

- Powered by Kohler XTX775 IC 173cc OHV Auto Choke 4 stroke engine
- Cast iron sleeve in cylinder
- 460mm (18") heavy duty aluminium non rust chassis
- 10mm - 70mm cutting height range
- Masport Quadcut® 4 Blade Disc System for superior catching due to increased airflow
- Front 200mm (8") and Rear 200mm (8") dual ball bearing wheels
- Comfortable upturned upper handle with soft grip and Operator Presence Control bar
- Reinforced lower handle for added strength
- Camlocks for quick release handle fold down
- Handle Lift System for easy catcher removal and storage
- Large capacity 50 litre high density plastic catcher with 'full' indicator
- Solid catcher retainer system
- Rear discharge chute designed for efficient grass release when mowing without a catcher
- Zone start for comfortable starting position
- Washport to facilitate cleaning
Features
Mulching Capable
Naturally recycles the grass by recutting it and feeding it back into your lawn.
Handle Lift System
Step on the foot pedal and lift the handle to quickly access the catcher, it is that easy!
Catcher 'Full' Indicator
Shows when the catcher is full - takes the guess work out of emptying the catcher.
HDPE Plastic Catcher
High Density Polyethylene Plastic catchers.
Zone Start
The conveniently positioned starter cord eliminates the need to bend all the way down to pull-start, reducing the risk of back strain.
Deck Washport
Hose fitting point on the housing to clean the housing while the mower engine is running, increasing the life of the deck and improving cutting efficiency.
Rear Discharge Chute
Designed to distribute grass out of the rear of the machine and spread it evenly and safely without blocking.
Specifications
Engine
Engine Make
Kohler
Engine Model
XTX775 IC
Engine Type
4 Stroke
Engine Capacity
173cc
Power Rating (Torque)
7.75ft/lb or 10.5Nm
Cutting
Cutting Width
460mm (18")
Cutting Height Range
10mm - 70mm
Cutting Methods
Catch, Mulch, Rear Discharge
Number of Blades
4
Cutting System
Masport Quadcut® 4 Blade Disc System
Cutting Height Steps
11
Cutting Height Adjustment
Single Point
Drive
Drive System
Push
Chassis / Deck
Chassis Material
Aluminium
Handle
Upper Handlebar Type
Upturned with soft grip and Operator Presence Control bar
Handlebar Retainer
Camlocks
Lower Handlebar Type
Reinforced
Catcher
Catcher Type
High density plastic
Catcher Volume
50 litre
Wheels
Wheel Bearing Type
Dual Ball
Wheel Type & Size
MSV® Mag Front 200mm (8") and Rear 200mm (8")
Weight
35.7kg
Product Dimensions (W x H x L)
533mm x 1060mm x 1435mm
Documents
- Warranty Card
- Warranty Card - Engine
- Owner's Manual
